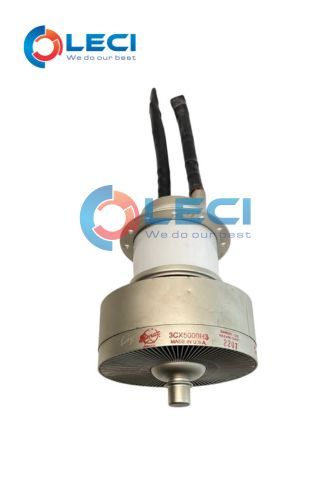

3CX5000H3 Electron tubes

We offer the 3CX5000H3 Electron Tube at a competitive price with fast global delivery

3CX5000H3 Electron tubes Information

• Maximum Plate Dissipation: 5000W

• Maximum Grid Dissipation: 150W

• Frequency for Max Rating (CW): 90 MHz

• Amplification Factor: 18

• Filament/Cathode: Thoriated Tungsten

• Filament Voltage: 7.5V

• Filament Current: 74.5A

• Capacitance (Grounded Cathode):

• Input: 51.0 pF

• Output: 1.5 pF

• Feedthrough: 25 pF

• Cooling: Forced Air

• Base: Flexible Filament Leads

• Air Socket: SK-1316

• Length: 17.50 in (444.50 mm)

• Diameter: 6.45 in (163.80 mm)

• Weight: 10.0 lb (4.5 kg)

Why Choose LECI for Electron Tubes?

We are a trusted supplier offering fast global delivery of high-quality electron tubes.

Our competitive pricing ensures you get the best value without long wait times.

With 20 years of technical expertise, our team is ready to assist with installation and repair for machines using electron tubes.

ELECTRON TUBES, TOSHIBA Canon Electron tubes, Thales Electron Tubes
