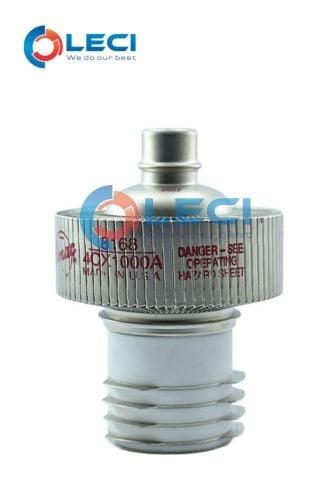

4CX1000A / 8168 Electron tubes

4CX1000A / 8168 Electron tubes Specifications:

• Maximum Plate Dissipation: 1,000 Watts

• Frequency for Max Rating (CW): 110 MHz

• Filament/Cathode: Oxide Coated, 6.0 Volts, 9.0 Amps

• Cooling: Forced Air

• Base: Special, Breechblock SK-800B

• Capacitance (Grounded Cathode):

• Input: 81.0 pF

• Output: 11.8 pF

• Feedthrough: 0.1 pF

• Capacitance (Grounded Grid):

• Input: 35.5 pF

• Output: 12.0 pF

• Feedthrough: 0.0 pF

• Dimensions:

• Length: 4.80 in (122.00 mm)

• Diameter: 3.37 in (85.50 mm)

• Weight: 27 oz (0.77 kg)

LECI specializes in supplying high-frequency tubes for industrial applications and premium vacuum tubes for audio systems

ELECTRON TUBES, TOSHIBA Canon Electron tubes, Thales Electron Tubes, Eimac Electron Tubes, Audio Tubes
