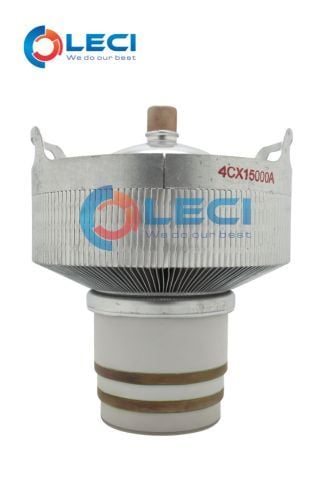

4CX15000A Electron Tubes

4CX15000A Electron Tubes Specifications:

• Filament Voltage: 6.3V

• Filament Current: 160A

• Amplification Factor: 4.5

• Interelectrode Capacitances (Grounded cathode)

•  Input: 168pF

• Feedback: 2pF

• Output: 28pF

• Weight: 5.8kg

• Maximum Length: 235mm

• Maximum Diameter: 191.5mm

• Operation position: vertical

• Max working temperature on the tube shell: 250℃

• Cooling method: air forced

ELECTRON TUBES, TOSHIBA Canon Electron tubes, Thales Electron Tubes, Eimac Electron Tubes
