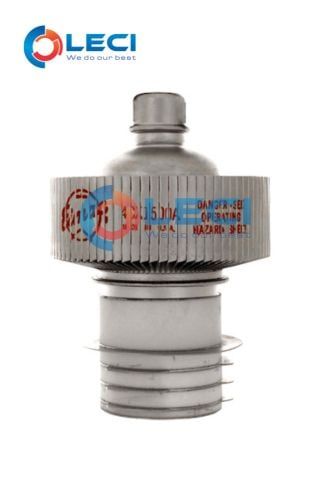

4CX1500A Electron tubes

4CX1500A Electron tubes Specifications:

• Maximum Plate Dissipation: 1,500 Watts

• Frequency for Max Rating (CW): 150 MHz

• Amplification Factor: 5.5

• Filament/Cathode: Thoriated Tungsten, 5.0 Volts, 38.5 Amps

• Cooling: Forced Air

• Base: Special, Breechblock SK-831

• Capacitance (Grounded Cathode):

• Input: 78.0 pF

• Output: 10.5 pF

• Feedthrough: 0.5 pF

• Dimensions:

• Length: 4.90 in (124.5 mm)

• Diameter: 3.37 in (85.60 mm)

• Weight: 36 oz (850 g)

• High Power: Delivers up to 1500 watts of power for demanding applications.a

ELECTRON TUBES, TOSHIBA Canon Electron tubes, Thales Electron Tubes, Eimac Electron Tubes
