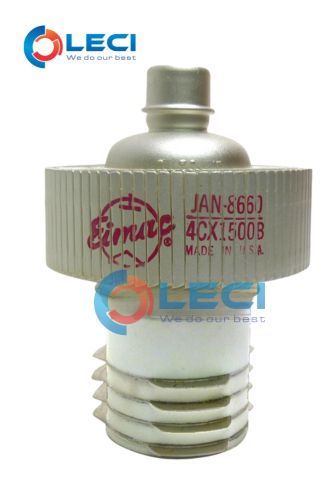

4CX1500B / 8660

4CX1500B / 8660 Electron Tubes Specifications:

• Maximum Plate Dissipation: 1,500 Watts

• Frequency for Max Rating (CW): 110 MHz

• Filament/Cathode: Oxide Coated, 6.0 Volts, 10.0 Amps

• Cooling: Forced Air

• Base: Special, Breechblock SK-800B

• Capacitance (Grounded Cathode):

• Input: 81.5 pF

• Output: 11.8 pF

• Feedthrough: 0.2 pF

• Dimensions:

• Length: 4.80 in (121.90 mm)

• Diameter: 3.37 in (85.60 mm)

• Weight: 27 oz (0.77 kg)

ELECTRON TUBES, TOSHIBA Canon Electron tubes, Thales Electron Tubes
