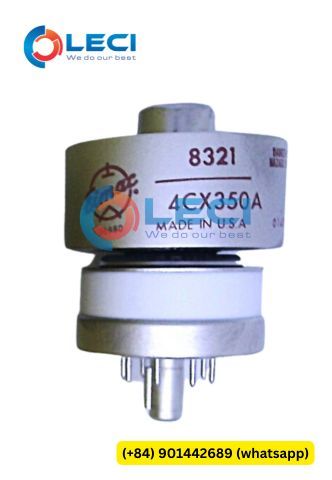

4CX350A Electron tubes Specifications

• Maximum Plate Dissipation: 350 Watts

• Frequency for Max Rating (CW): 110 MHz

• Amplification Factor: 13

• Filament/Cathode: Oxide Coated, 6.0 Volts, 2.9 Amps

• Cooling: Forced Air

• Base: 9-Pin Special, SK-600A

• Capacitance (Grounded Cathode):

• Input: 23.6 pF

• Output: 5.6 pF

• Feedthrough: 0.3 pF

• Dimensions:

• Length: 2.47 in (62.60 mm)

• Diameter: 1.64 in (41.60 mm)

• Weight: 4 oz (113 g)

ELECTRON TUBES, TOSHIBA Canon Electron tubes, Thales Electron Tubes, Eimac Electron Tubes
