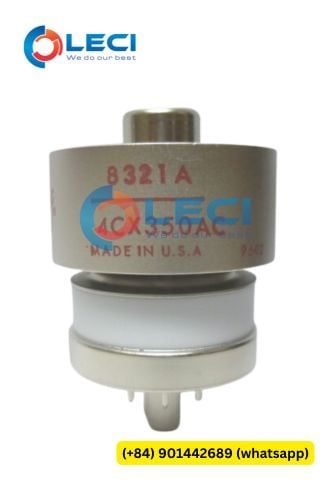

4CX350AC Electron tubes - Radial Beam Power Tetrode

4CX350AC Electron tubes Specifications

• Maximum Plate Dissipation: 350 Watts

• Maximum Screen Dissipation: 8 Watts

• Maximum Grid Dissipation: 0 Watts

• Frequency for Max Rating (CW): 110 MHz

• Amplification Factor: 13

• Filament/Cathode: Oxide Coated

• Voltage: 6.0 Volts

• Current: 2.9 Amps

• Capacitance (Grounded Cathode):

• Input: 23.6 pF

• Output: 5.6 pF

• Feedthrough: 0.3 pF

• Capacitance (Grounded Grid):

• Input: - pF (Not specified)

• Output: - pF (Not specified)

• Feedthrough: - pF (Not specified)

• Cooling: Forced Air

• Base: 9-Pin Special

• Socket: SK-600A

• Chimney: SK-606
