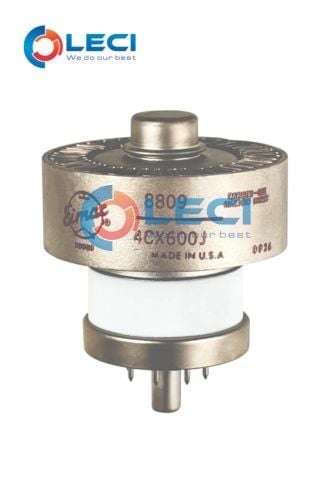

4CX600J / 8809 Electron Tubes

4CX600J / 8809 Electron Tubes Specifications:

• Plate Dissipation (Max): 600 Watts

• Screen Dissipation (Max): 15 Watts

• Grid Dissipation (Max): 1 Watt

• Frequency for Max Rating (CW): 110 MHz

• Amplification Factor: Not specified

• Filament/Cathode: Oxide Coated

• Voltage: 6.0 Volts

• Current: 5.4 Amps

• Capacitance (Grounded Cathode)

• Input: 50 pf

• Output: 6.3 pf

• Feedthrough: 0.13 pf

• Cooling: Forced Air

• Base: 9 Pin Special

• Socket: SK-607

• Air Chimney: SK-646

• Length: 2.71 in; 68.80 mm

• Diameter: 2.08 in; 52.08 mm

• Weight: 7.7 oz; 2.18 gm

• Maximum Ratings

• Plate Voltage: 3,000 Volts
