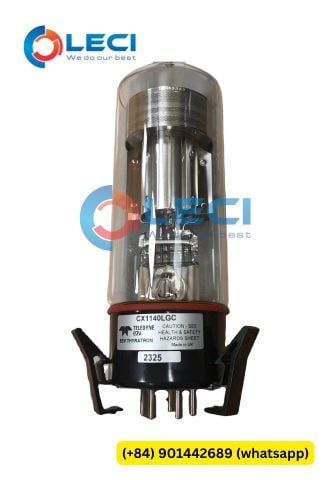

The CX1140LGC is a deuterium-filled thyratron, specifically designed for applications requiring fast switching and long pulse durations. Below are the detailed technical specifications and applications of this device.
CX1140LGC Deuterium Thyratron Specifications
Maximum Peak Anode Voltage: 33 kV
Maximum Peak Anode Current: 1000 A
Average Anode Current:
Continuous Operation: 1.25 A
Intermittent Operation: 2.2 A
Cathode Type: Oxide-coated
Heater Voltage: 6.3 V (+0.2 V / -0.3 V)
Minimum Warm-up Time: 5 minutes
Dimensions:
Overall Length: Max. 317.5 mm
Overall Diameter: Max. 84.12 mm
Weight: 0.7 kg
Applications:
The CX1140LGC is widely used in the medical industry, particularly in radiotherapy systems. Over 90% of radiotherapy systems worldwide use this thyratron to power linear accelerators (LINACs), which generate high-energy X-rays for cancer treatment.
With its rugged design and high performance, the CX1140LGC ensures stable operation in demanding applications, playing a crucial role in healthcare and medical treatment technologies.
The CX1140LGC is widely used in medical and industrial equipment, particularly in linear accelerators (LINACs) for cancer radiotherapy. With over 90% of radiotherapy systems worldwide relying on this thyratron, it plays a crucial role in generating high-power X-ray beams for effective treatment.
Additionally, the CX1140LGC is utilized in radar systems, high-power lasers, and telecommunications equipment, optimizing system performance and ensuring long-term reliability.
Liên hệ chúng tôi để được tư vấn chi tiết
Trụ sở 1: Phòng 1901, Tòa nhà Saigon Trade Center, Số 37 Tôn Đức Thắng, Phường Bến Nghé, Quận 1, Thành phố Hồ Chí Minh, Việt Nam.
Describe
CX1140LGC Deuterium Thyratron
The CX1140LGC is a deuterium-filled thyratron, specifically designed for applications requiring fast switching and long pulse durations. Below are the detailed technical specifications and applications of this device.
CX1140LGC Deuterium Thyratron Specifications
Maximum Peak Anode Voltage: 33 kV
Maximum Peak Anode Current: 1000 A
Average Anode Current:
Continuous Operation: 1.25 A
Intermittent Operation: 2.2 A
Cathode Type: Oxide-coated
Heater Voltage: 6.3 V (+0.2 V / -0.3 V)
Minimum Warm-up Time: 5 minutes
Dimensions:
Overall Length: Max. 317.5 mm
Overall Diameter: Max. 84.12 mm
Weight: 0.7 kg
Applications:
The CX1140LGC is widely used in the medical industry, particularly in radiotherapy systems. Over 90% of radiotherapy systems worldwide use this thyratron to power linear accelerators (LINACs), which generate high-energy X-rays for cancer treatment.
With its rugged design and high performance, the CX1140LGC ensures stable operation in demanding applications, playing a crucial role in healthcare and medical treatment technologies.
The CX1140LGC is widely used in medical and industrial equipment, particularly in linear accelerators (LINACs) for cancer radiotherapy. With over 90% of radiotherapy systems worldwide relying on this thyratron, it plays a crucial role in generating high-power X-ray beams for effective treatment.
Additionally, the CX1140LGC is utilized in radar systems, high-power lasers, and telecommunications equipment, optimizing system performance and ensuring long-term reliability.
