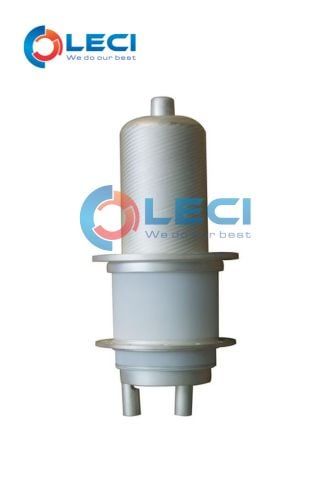

Electron Tubes 3CW45000H3

Electron Tubes 3CW45000H3 Specifications:

• Maximum Ratings:

• Plate Dissipation: 45,000 Watts

• Screen Dissipation: ---

• Grid Dissipation: 750 Watts

• Frequency for Max. Rating (CW): 75 MHz

Characteristics:

• Amplification Factor: 30

• Filament/Cathode: Thoriated Tungsten

• Filament Voltage: 10.0 Volts

• Filament Current: 160 Amps

Capacitance (Grounded Cathode):

• Input: 77.0 pF

• Output: 2.3 pF

• Feedthrough: 43.0 pF

Mechanical:

• Cooling: Water and Forced Air

• Base: Flexible Filament Leads

• Length: 19.2 in (487.7 mm)

• Diameter: 5.3 in (134.6 mm)

• Weight: 14.0 lb (6.4 kg)
