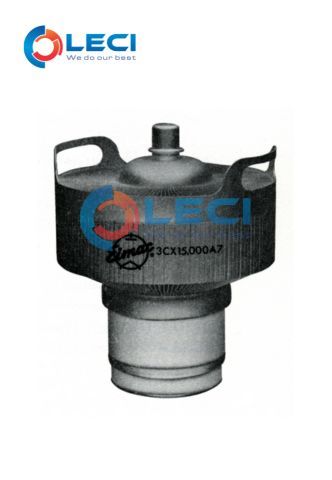

Electron Tubes 3CX15000A7

We are a leading electron tube supplier in Asia, offering the Electron Tubes 3CX15000A7 with ready stock. Our experienced technical team provides installation and repair services to ensure optimal performance. We also offer fast international shipping to meet the needs of customers worldwide.

Specifications: Electron Tubes 3CX15000A7

Maximum Ratings:

• Plate Dissipation: 15,000 Watts

• Grid Dissipation: 500 Watts

• Frequency for Max. Rating (CW): 110 MHz

Characteristics:

• Amplification Factor: 200

• Filament: Thoriated Tungsten

• Filament Voltage: 6.3 Volts

• Filament Current: 160 Amps

Capacitance (Grounded Cathode):

• Input: 56.0 pF

• Output: 0.2 pF

• Feedthrough: 36 pF

Capacitance (Grounded Grid):

• Input: 56.0 pF

• Output: 36.0 pF

• Feedthrough: 0.2 pF

Mechanical:

• Cooling: Forced Air

• Base: Coaxial

• Air Socket: SK-1300

• Air Chimney: SK-1306

• Length: 8.75 in (222.30 mm)

• Diameter: 7.05 in (179.10 mm)

• Weight: 12.0 lb (5.5 kg)

Electron Tubes 3CX15000A7

TOSHIBA Canon Electron tubes, Thales Electron Tubes
