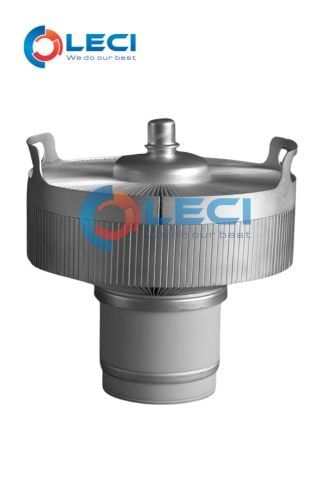

Electron tubes 3CX20000A7

Specifications:

Maximum Ratings:

• Plate Dissipation: 20,000 Watts

• Grid Dissipation: 500 Watts

• Frequency for Max. Rating (CW): 110 MHz

Characteristics:

• Amplification Factor: 200

• Filament/Cathode: Thoriated Tungsten

• Filament Voltage: 6.3 Volts

• Filament Current: 160 Amps

Capacitances (Grounded Cathode):

• Input: 61.0 pF

• Output: 0.2 pF

• Feedthrough: 360 pF

• Capacitances (Grounded Grid):

• Input: 61.0 pF

• Output: 36.0 pF

• Feedthrough: 0.2 pF

Mechanical:

• Cooling: Forced Air

• Base: Coaxial

• Air Socket: SK-1300

• Length: 8.75 in (222.20 mm)

• Diameter: 8.31 in (211.10 mm)

• Weight: 13.5 oz (6.15 kg)
