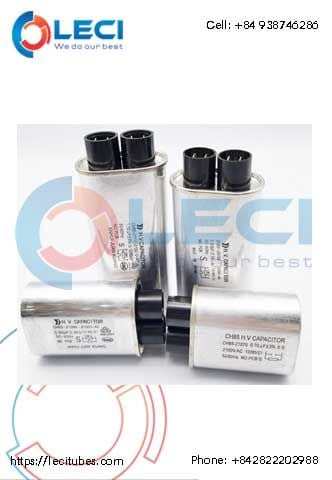

Capacitor for Micro-Wave Oven CH85 HV

Describe

Specification Capacitor for Micro-Wave Oven (CH85 HV)

  • Rated voltage: 1500V-2600V. AC
  • Rated capacity: 0. 2μF-1. 5μF
  • Capacity deviation: ±3%
  • Loss tangent: <0. 0035
  • Rated frequency: 50/60Hz
  • Working temperature: –10—+85℃ Relative humidity: 45%—85% Atmosphere pressure: 85/21
  • Measuring voltage Pole-pole Rated voltage ×4. 3 times VDC/10S
  • Pole-Shell 9000V. AC/10S
  • Insulation resistance Pole-pole 10MΩ±2 MΩ
  • Pole-Shell >3000MΩ
  • CH85.25105.2500VAC
